PTFE-Enhanced Graphite Gland Packing for High-Performance Sealing

Descrizione:

**Top Sealing PTFE Impregnated Graphite Gland Packing Style 5200**

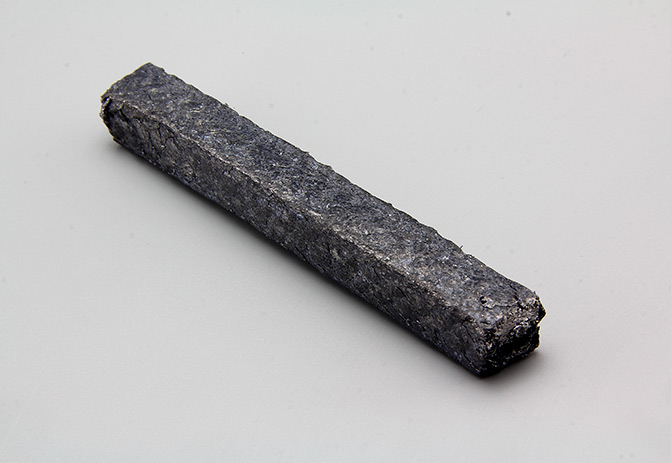

Style 5200 is crafted from expanded flexible graphite packing, impregnated with a PTFE emulsion that serves as a binding agent, resulting in a non-straining packing solution. It is highly recommended for use in general service pumps where a high-quality performance product is essential, particularly in industries such as food processing, and pulp and paper mills.

Style 5200 is a versatile packing material, compatible with a wide range of industrial fluids. It does not degrade over time and significantly reduces shaft wear. The inherent properties of Style 5200 contribute to the extended life of packing rings due to its exceptional moldability.

PTFE-Enhanced Graphite Gland Packing for High-Performance Sealing

Immagine dettagliata

Dettagli del prodotto

Regular Package Sizes: 3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pounds, 5kg, 5 pounds, 10kg, 10 pounds. Custom packaging options are available upon request.

Standard Dimension Sizes: 3, 4, 5, 6, 1/4", 8, 3/8", 10, 7/16", 12, 1/2", 14, 16, 18, 19, 20, 22, 25, 30, 35, 40, 45, 50.

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione


Pressure: bar	30	N/A	250
Speed: m/s	2	N/A	2
PH Range	2-12
Temp.℃	-240 to +260
Density: (g/cm³)	1.3
Size	1/8"-2"
Size	3mm-50mm

1. STYLE 5200 is designed for use in rotary and centrifugal applications, offering high-quality performance specifically tailored for the pulp and paper industry.
2. STYLE 5200 is compatible with a wide range of substances, including steam, water, oil, solvents, alkalis, acids, and most chemicals.

Simply you can wholesale PTFE-Enhanced Graphite Gland Packing for High-Performance Sealing direct from manufacturers.
