Graphite Coated and PTFE-Infused Graphite Gland Packing for Advanced Sealing Technology

Descrizione:

TOP SEALING Graphite PTFE Gland Packing Style 6200GFO is crafted from a graphite-PTFE compound that is free of lubricants, yet boasts excellent thermal conductivity. It offers high flexibility and maintains volumetric stability without the risk of embrittlement or aging, ensuring a long service life and efficient operation. It also provides gentle treatment to shafts, reducing wear and tear.

The Graphite PTFE Gland Packing Style 6200, while similar in composition, includes a lubricant, marking the primary distinction between it and the 6200GFO variant. The 6200GFO variant, however, excels with superior thermal conductivity compared to the Style 6200, making it the preferred choice for applications demanding high thermal efficiency.

Graphite Coated and PTFE-Infused Graphite Gland Packing for Advanced Sealing Technology

Immagine dettagliata

Dettagli del prodotto

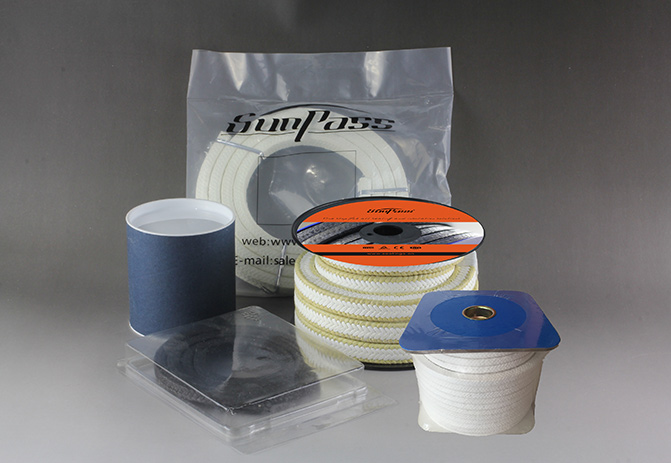

Regular Package Sizes: 3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pounds, 5kg, 5 pounds, 10kg, 10 pounds. Custom packaging options are available upon request.

Not Suitable for: Highly oxidizing environments, including materials such as oleum, fuming nitric acid, aqua regia, gaseous fluorine, lacquer, and paints.

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione


Pressure: bar	25 for 6200;50 for 6200GFO	250	150
Speed: m/s	25	2	—
PH Range	0-14
Temp ℃	-200°C to 288°C
Density: (g/cm³)	Abt. 1.50-1.55 for 6200GFO; 1.65-1.75 for 6200
Size	1/8"-2"
Size	3mm-50mm

1. "PTFE-Graphite Packing (Similar to GFO) - Style 6200GFO/Style 6200 is designed for use in pumps, agitators, mixers, and kneaders, particularly in applications involving high peripheral speeds and temperatures where pure PTFE packing would be insufficient."

2. "PTFE-Graphite Packing (Similar to GFO) - Style 6200GFO/Style 6200 is suitable for a wide range of liquid and gaseous media, including acids, alkalis, solvents, adhesives, and abrasive or crystalline substances. It is ideal for challenging environments such as sewage, slurries, and salt solutions."
