Inconel Cotton Fiber Fiberglass Reinforced Graphite Gland Packing

Descrizione:

TOP SEALING Inconel Cotton Fiber, Fiberglass Reinforced Graphite Gland Packing is crafted from expanded graphite yarn, intricately braided using advanced braiding techniques. This high-performance material is compatible with a wide range of media, including hot water, steam, acids, alkalis, organic solvents, hydrocarbons, and low-temperature liquids. It offers superior sealing capabilities and enhanced safety, making it an effective composite solution for various applications. Pure Flexible Graphite Packing, in particular, has gained significant popularity for its reliability and performance.

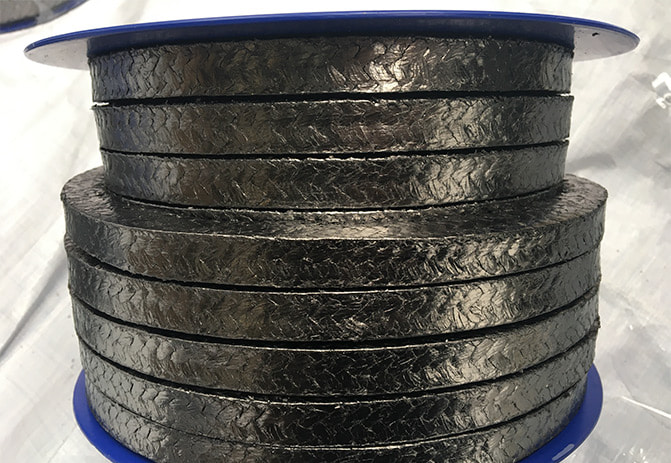

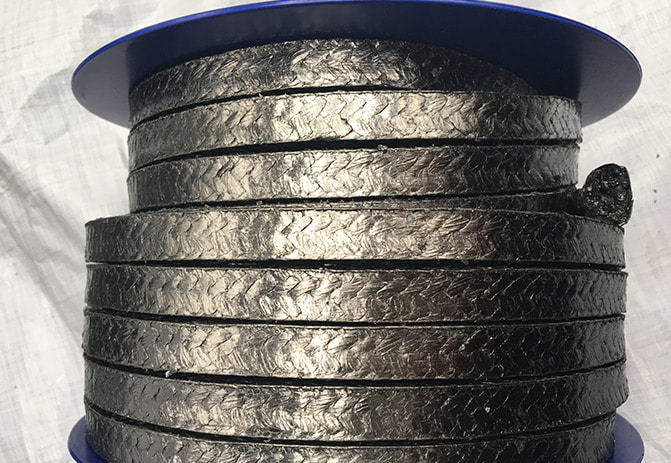

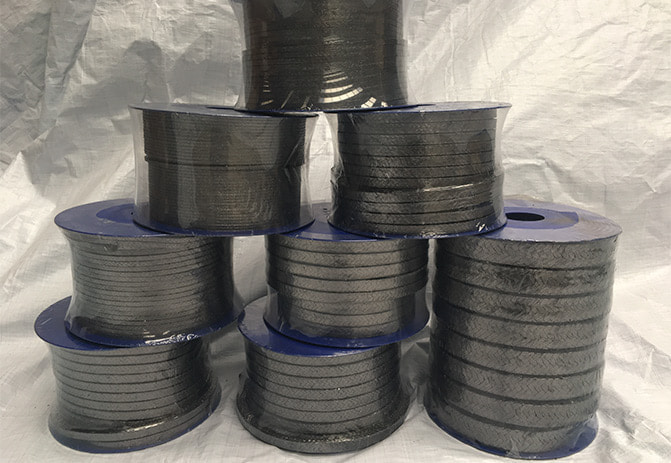

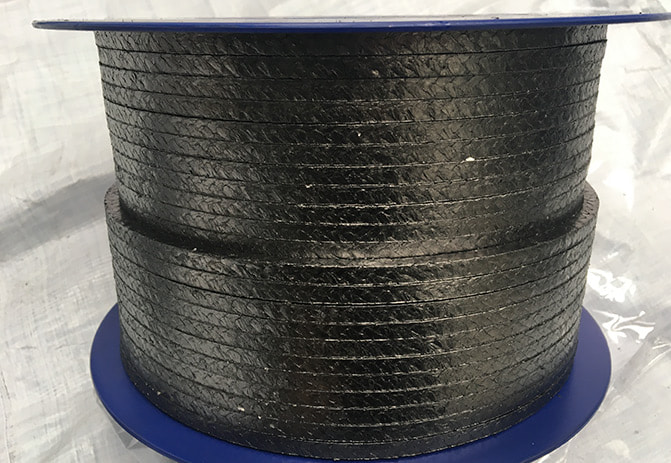

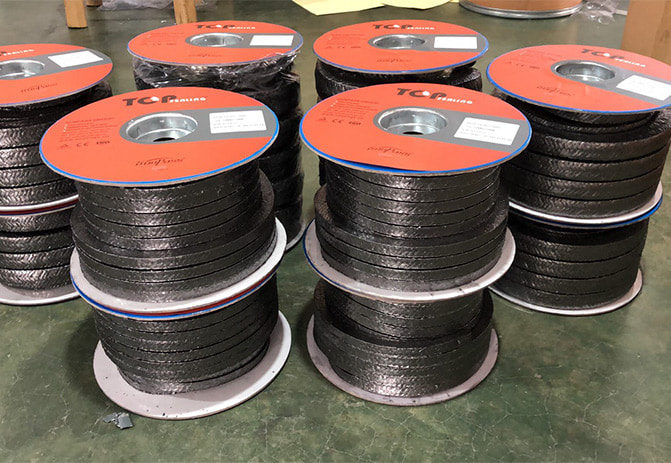

Immagine dettagliata

Dettagli del prodotto

STYLE

Types of Expanded Graphite Braided Packing

STYLE 5000

Pure Flexible Graphite Packing

STYLE 5000FG

Pure Flexible Graphite Packing with Fiberglass Threads Reinforced

STYLE 5000C

Pure Flexible Graphite Packing with Carbon Fiber Threads Reinforced

STYLE 5000INC

Pure Flexible Graphite Packing with Inconel Threads Reinforced

Fewer strong oxidizers

Other flexible Graphite Packing

Pure Flexible Graphite Packing Impregnated With PTFE & Coated Graphite.

Pure Flexible Graphite Packing With Sicyon Core.

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione


Pressure: bar	20	100	300
Speed: m/s	22.8	2	1.5
PH Range	1-14
Temp.℃	1650℃ in Non oxidizing condition; -240℃in Cryogenics;-185 to +450 in oxid; -185 to +650 in steam
Density: (g/cm³)	1.45-1.50
Size	1/8"-2"
Size	3mm-50mm

1. "Pure Flexible Graphite Packing is ideal for use in valves and rotary applications, including high-temperature valves and soot blowers."

2. "Pure Flexible Graphite Packing is versatile and suitable for a wide range of applications, effectively sealing hot water, high-temperature and high-pressure steam, heat transfer fluids, hydrogen gas, ammonia, solvents, hydrocarbons, and cryogenic liquids."

Simply you can wholesale Inconel Cotton Fiber Fiberglass Reinforced Graphite Gland Packing direct from manufacturers.
