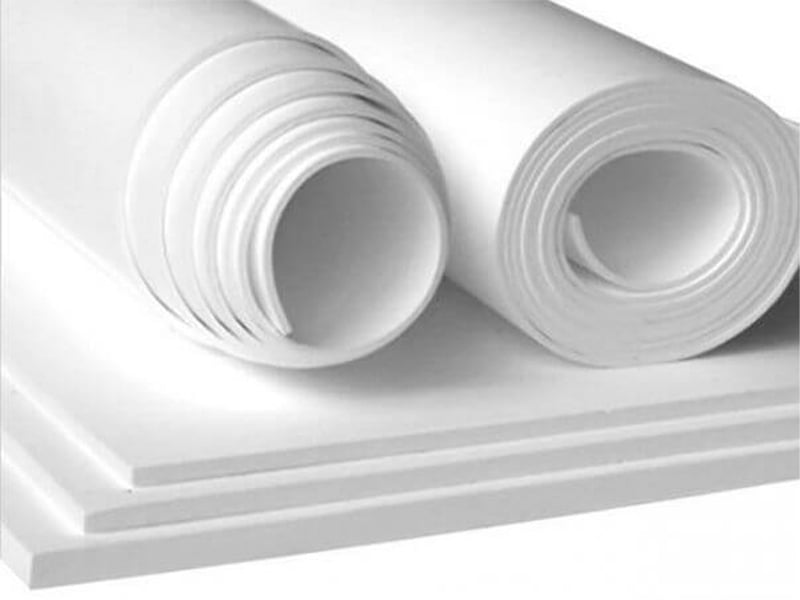

Expanded PTFE Sheet: Versatile and High-Performance Sealing Material

Descrizione:

"Tenglong Expanded PTFE Sheet: A Superior Gasket Material Crafted from 100% PTFE Fluorocarbon"

"Tenglong's Expanded PTFE Sheet is meticulously developed from 100% PTFE, offering exceptional tensile strength, flexibility, and hardness. Its remarkable chemical and thermal resistance makes it the ideal choice for gasket seals in the most demanding environments. This product boasts an indefinite shelf life, ensuring it remains supple and reliable without becoming brittle, aging, or degrading over time."

Expanded PTFE Sheet: Versatile and High-Performance Sealing Material

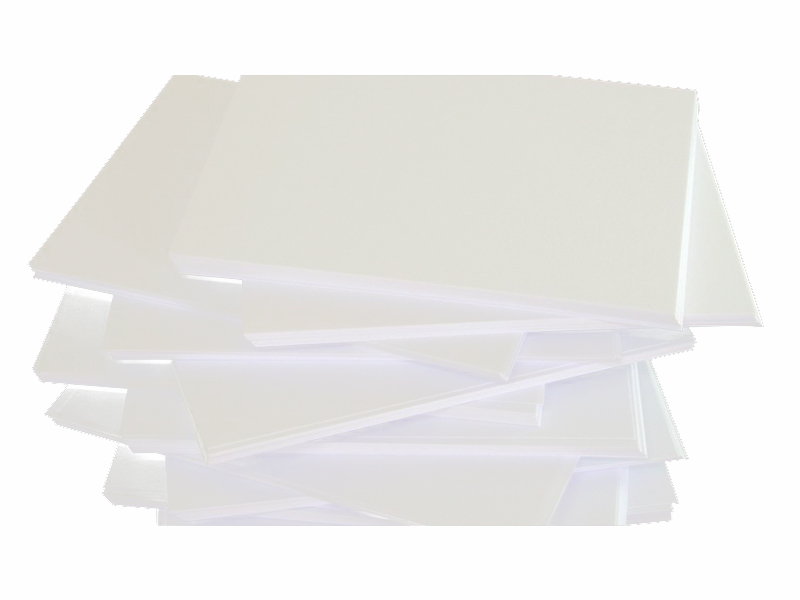

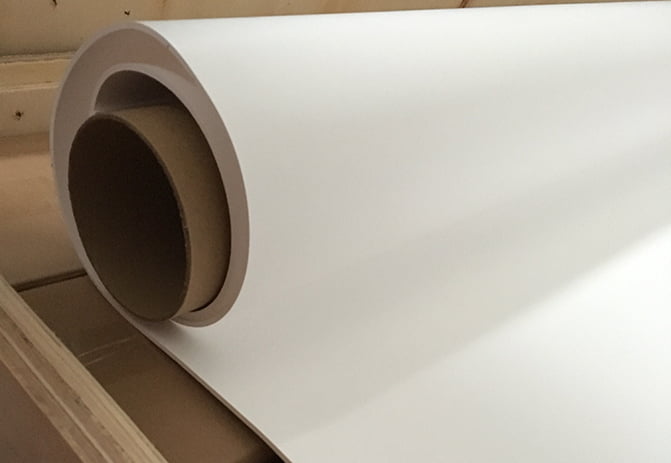

Immagine dettagliata

Dettagli del prodotto

Property	Unite	Nominal Value
Density	g/cm3	0.65-0.95
Compressibility	%	45
Recovery	%	15
Length Tensile Strength	Mpa	17
Cross Tensile Strength	Mpa	27
Compressive Strength	Mpa	14.7
Max Compressive Strength	Mpa	20
pH Limit	-	0-14
Specific Gravity	-	0.85 ± 0.04

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione

Property	Description	Value
		English	Metric
Temperature	Minimum	-320°F	-196℃
	Maximum	600°F	315℃
Color	White	-	-
General Size	Thickness	0.02-0.3 inch	0.4-8 mm
	Sheet Size A Width: 50' ( 1270mm)	50' X 150' (1270mm X 3810mm) 50' X 50' (1270mm X 3810mm)
	Sheet Size B Width: 60' ( 1500mm)	60' X 160' (1500mm X 4100mm) 60' X 80' (1500mm X 2000mm) 60' X 53' (1500mm X 1350mm) 60' X 40' (1500mm X 1000mm) 60' X 180' (1500mm X 4600mm) 60' X 120' (1500mm X 3000mm) 60' X 60' (1500mm X 1500mm)
	Sheet Size C Width: 100'( 2700mm)	106' X 150' (2700mm X 3810mm)

Simply you can wholesale Expanded PTFE Sheet: Versatile and High-Performance Sealing Material direct from manufacturers.

Produttore professionale

SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Expanded PTFE Sheet: Versatile and High-Performance Sealing Material fornitori conosciuto nel mondo dal 2000.
