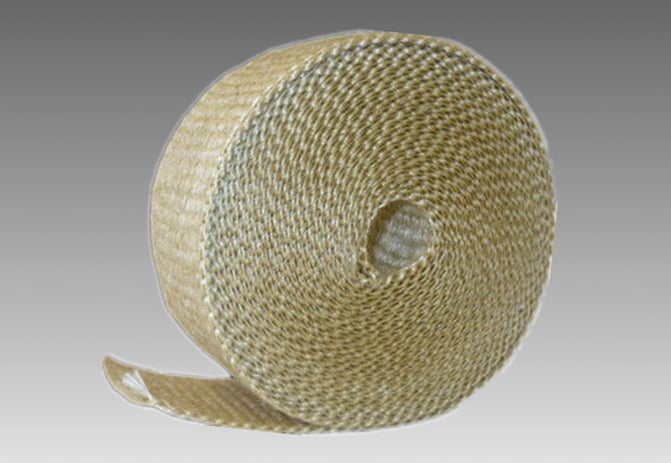

TOP SEALING VERMICULITED COATED FIBERGLASS TAPE is meticulously crafted from carefully woven fiberglass yarns, infused with vermiculite for enhanced performance. This versatile tape is designed for a range of applications, including thermal insulation and protection of electrical wires, cables, hoses, and pipes. Its robust construction not only contributes to energy conservation but also ensures the safety of personnel working in various industrial environments.
| Description Item | E-Glass | C-Glass | |
| Chemical Composition | SiO2 | 58-63% | 64-68% |
| CaO | 21-23% | 11-15% | |
| Al2O3 | 10-13% | 3-5% | |
| MgO | 2-4% | 4-6% | |
| B2O3 | - | 0-6% | |
| Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in | H2O | 0.2 | 0.13 |
| 1.04 NH2SO4 | 0 | 0.1 | |
| 0.1 NaOH | 0.2-0.6 | 2.28 | |
| Temperature | Softening Point | 892℃/1635℉ | 748℃/1380℉ |
| Coefficient of Thermal Expansion-in/in/ °F x 10-7 | 2℃/29℉ | 5℃/40℉ | |
| Specific Gravity (bare fiber) | 2.63 | 2.49 | |
| Pristine Tensile Strength, psi | 510,000 | 400,000 | |
| Description Item | Vermiculite Coated Fiberglass Tape | ||
| English | Metric | ||
| Coating | Vermiculite | ||
| Coating Thickness | 0.28mil/0.7mil/ 0.98mil |
7um/18um/ 25um |
|
| Temperature Resistance |
Continuous Operation | 1500°F | 815°C |
| Short Duration Exposure | 1598°F | 870°C | |
| Melting Point | 2057°F | 1125°C | |
| Thickness | 0.03-0.24inch | 0.8mm to 6mm | |
| Width | 0.40-8inch | 10mm to 200mm | |
| Color | Tan | ||
Simply you can wholesale Vermiculite-Coated Fiberglass Tape: Enhanced Heat and Abrasion Resistance for Industrial Applications direct from manufacturers.
Features
· "Improve the abrasion resistance and stiffness"
· "Tough, durable and resist metal splash and welding spatter"
· High tensile strength & deformation-resistance
· Excellent dimensional stability
SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Vermiculite-Coated Fiberglass Tape: Enhanced Heat and Abrasion Resistance for Industrial Applications fornitori conosciuto nel mondo dal 2000.
