Silicone-Reinforced Fiberglass Fabric: Advanced Heat and Chemical Protection

Descrizione:

"Premium Silicone-Coated Fiberglass Cloth: Engineered for Extreme Durability"

Introducing our top-sealing silicone fiberglass cloth, a high-performance fabric with a fiberglass base meticulously coated with silicone rubber on one or both sides. This advanced material is designed to excel in high-temperature environments, offering superior abrasion resistance, waterproofing, and an extended lifespan. The silicone coating significantly enhances oil and water resistance, surpassing the capabilities of uncoated fabrics and ensuring exceptional performance in demanding conditions.

Silicone-Reinforced Fiberglass Fabric: Advanced Heat and Chemical Protection

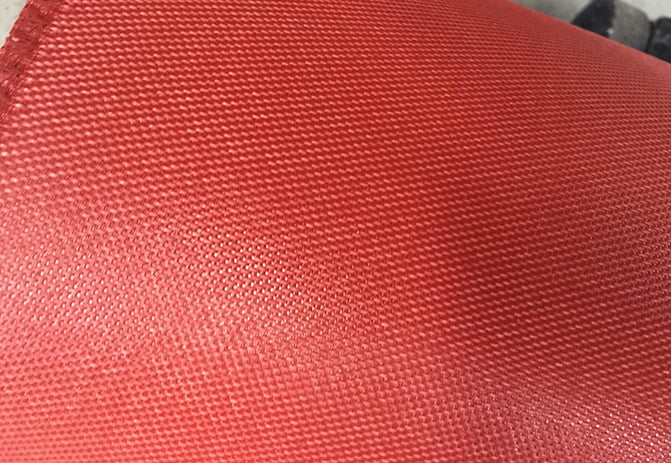

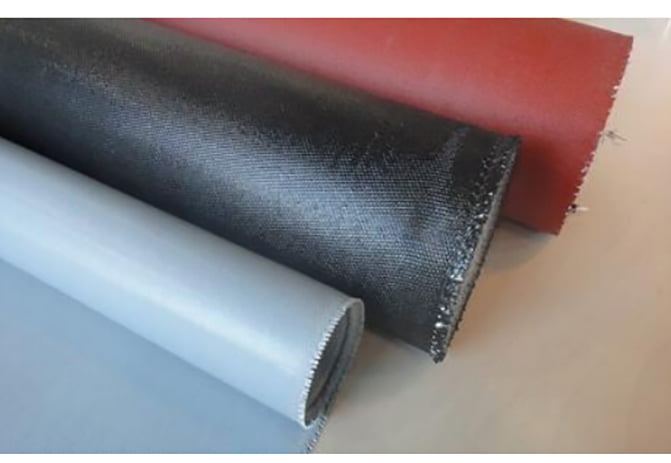

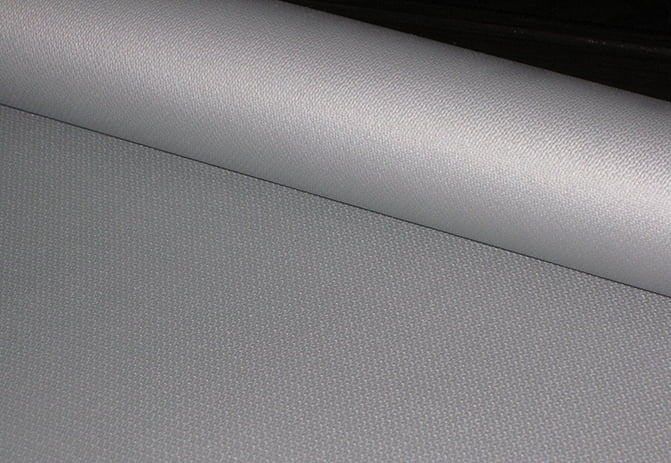

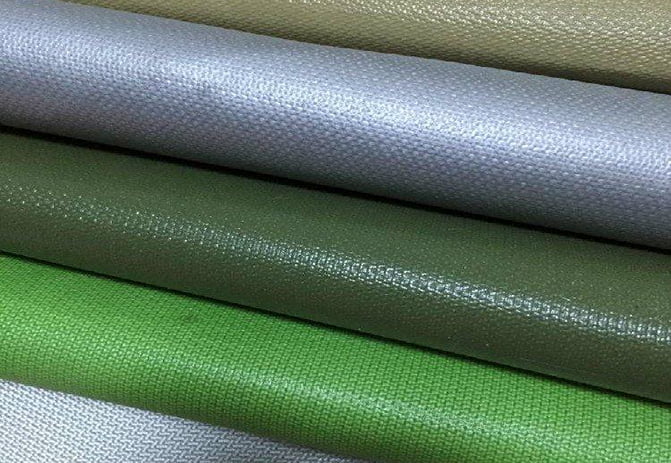

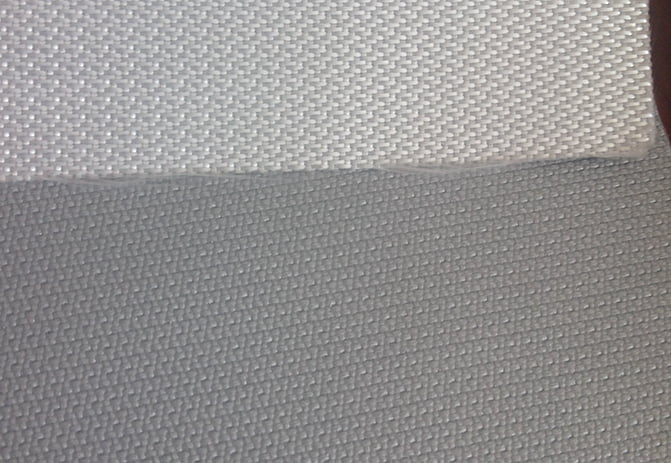

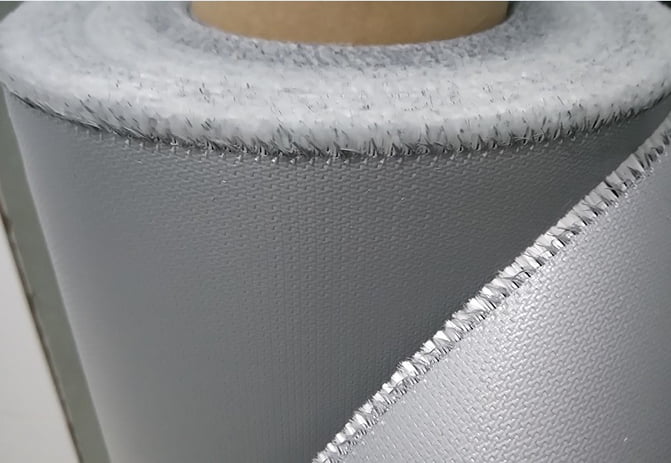

Immagine dettagliata

Dettagli del prodotto

DescriptionStyle No.		3800-08 Silicone	3800-10 Silicone	3800-15 Silicone	3800-20 Silicone	3800-30 Silicone
Base Cloth Weight	English	18 oz/y²	24 oz/y²	30 oz/y²	36 oz/y²	52 oz/y²
Base Cloth Weight	Metric	650 g/m²	800 g/m²	1000 g/m²	1250 g/m²	1800 g/m²
Thickness	English	0.03 inch	0.04 inch	0.06 inch	0.07 inch	0.1 inch
Thickness	Metric	0.8 mm	1 mm	1.5 mm	2 mm	3 mm
Width	English	40-70 inch	40-78 inch	40-78 inch	40-78 inch	40-78 inch
Width	Metric	1-1.8 m	1-2 m	1-2 m	1-2 m	1-2 m
Temperature	Base Fabric	535℃ (1000℉)
Temperature	Coating	260℃ (500℉)
Weave		Plain
Insulation	dielectric constant	3-3.2
Insulation	breakdown voltage	20 - 50 KV/mm

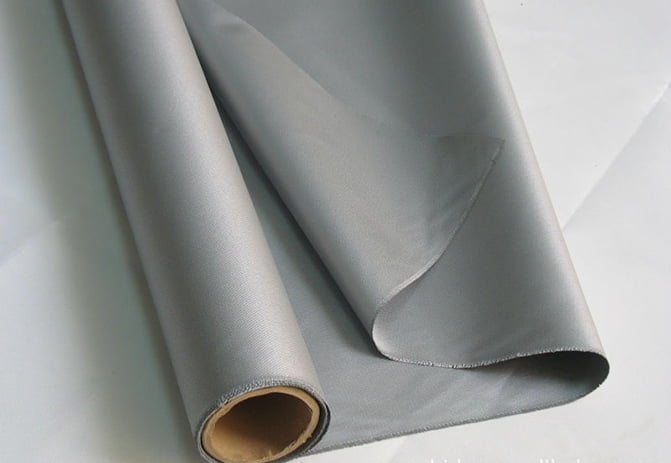

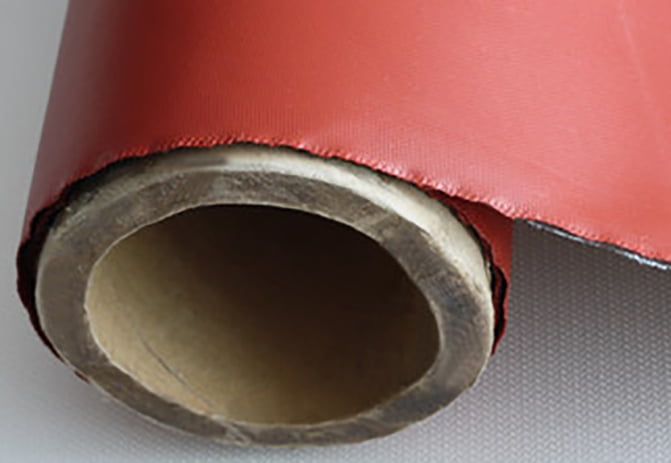

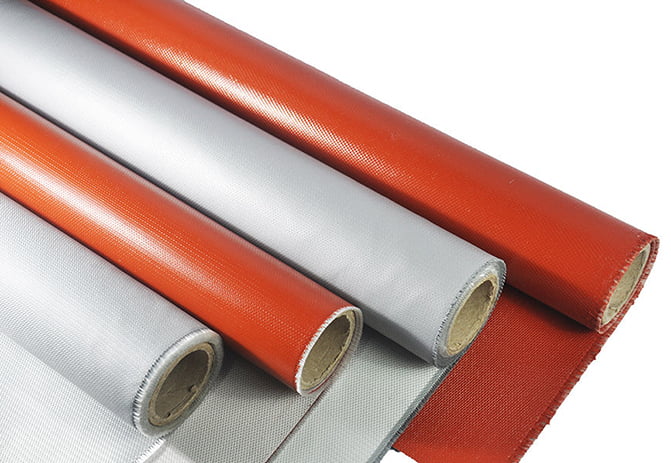

Color		Red, Grey

Altri stili

Dati applicativi

Vantaggi

Video

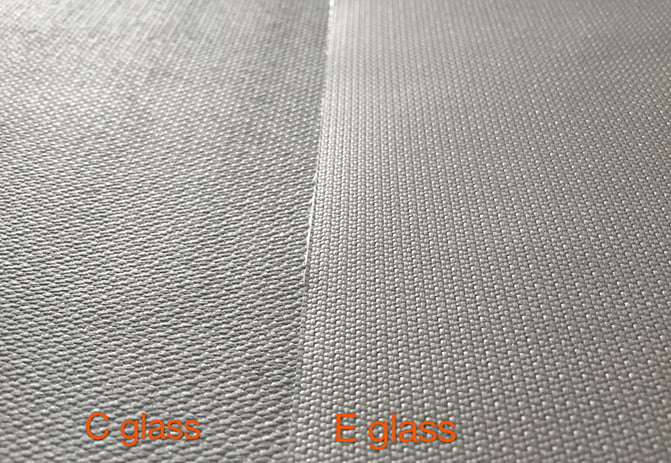

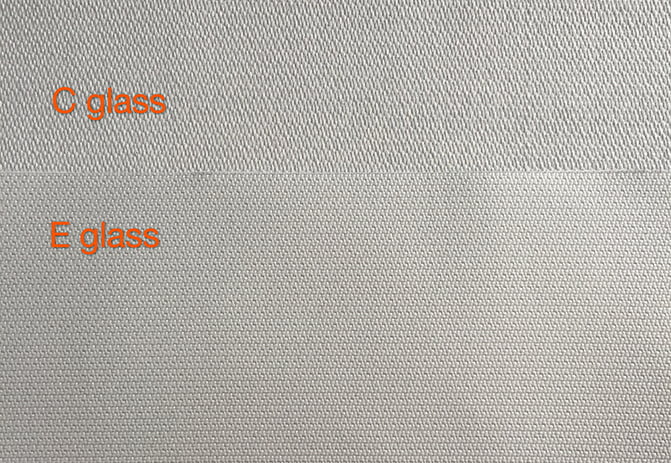

Confronto Visione

Property	Description	Value and Tolerance
Property	Description	English	Metric
Tensile Strength	Warp	200-400ibs/in min. avg.	35-70n/mm min. avg.
Tensile Strength	Fill	100-200ibs/in min. avg.	17.5-35n/mm min. avg.
Tear Strength	Warp	50ibs min. avg	8.75n/mm min. avg.
Tear Strength	Fill	25ilbs min. avg	4.375n/mm min. avg.
Burst Strength	-	200ibs/in2 min. avg	14.0618kg/cm2 min. avg
Hydrostatic Resistance	-	200ibs/in2 min. avg	14.0618kg/cm2 min. avg

Simply you can wholesale Silicone-Reinforced Fiberglass Fabric: Advanced Heat and Chemical Protection direct from manufacturers.
