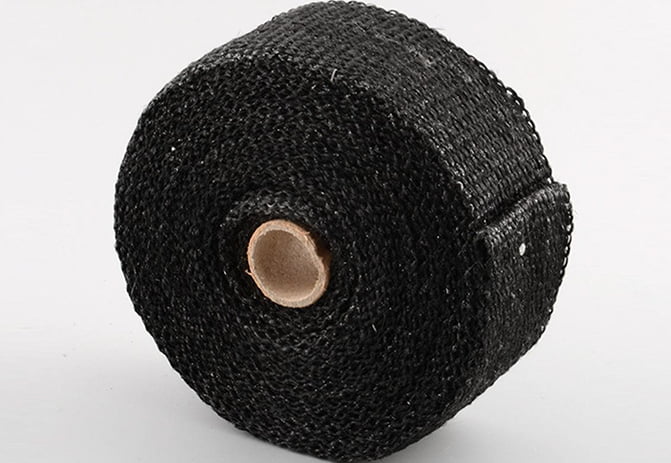

High-Performance Fiber Glass Tape with Graphite

Descrizione:

Introducing the TOP SEALING FIBER GLASS GRAPHITE TAPE, a high-performance solution with an exceptional graphite coating. This tape is engineered to enhance abrasion resistance and withstand extreme temperatures, offering continuous use at 1000°F (537°C) and extended performance at 1112°F (600°C), even tolerating higher temperatures for short durations.

Suitable for demanding environments, this tape thrives in hot, dry conditions and aggressive settings where untreated fabrics may be prone to damage due to flexing. The tape's high-temperature capabilities make it an ideal choice for protecting industrial wires, cables, hoses, tubes, and pipes. It also serves as a reliable source of thermal insulation and personnel protection.

Furthermore, the TOP SEALING FIBER GLASS GRAPHITE TAPE can be utilized as a gasket or seal, ensuring a secure and efficient seal in various applications.

High-Performance Fiber Glass Tape with Graphite

Immagine dettagliata

Dettagli del prodotto

Description Item E-Glass C-Glass
Chemical Composition SiO2  58-63% 64-68%
CaO 21-23% 11-15%
Al2O3 10-13% 3-5%
MgO 2-4% 4-6%
B2O3 - 0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in H2O 0.2 0.13
1.04 NH2SO4 0 0.1
0.1 NaOH 0.2-0.6 2.28
Temperature Softening Point  892℃/1635℉ 748℃/1380℉
Coefficient of thermal expansion-in/in/ °F x 10-7 2℃/29℉ 5℃/40℉
Specific Gravity (bare fiber) 2.63 2.49
Pristine Tensile Strength, psi 510,000 400,000

Altri stili

Dati applicativi
Vantaggi
Video
Confronto Visione
DescriptionStyle No. 3700G
Coating Graphite
Colour Black
Weave Plain
Thickness English 0.03-0.4inch
Metric 0.8mm to 10mm
Width English 0.60-8inch
Metric 15-200mm

Simply you can wholesale High-Performance Fiber Glass Tape with Graphite direct from manufacturers.

Produttore professionale

SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e High-Performance Fiber Glass Tape with Graphite fornitori conosciuto nel mondo dal 2000.
