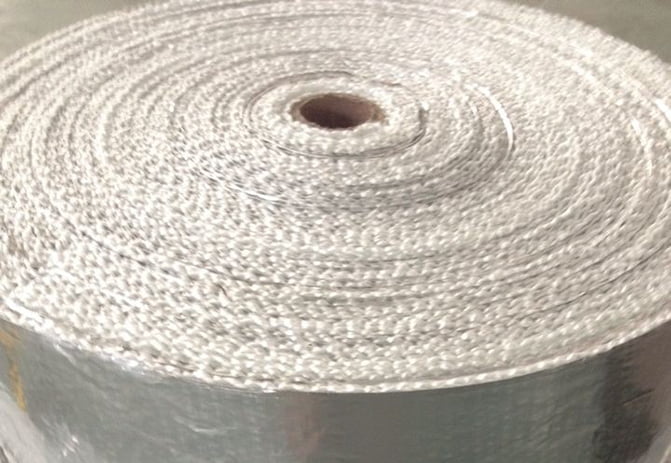

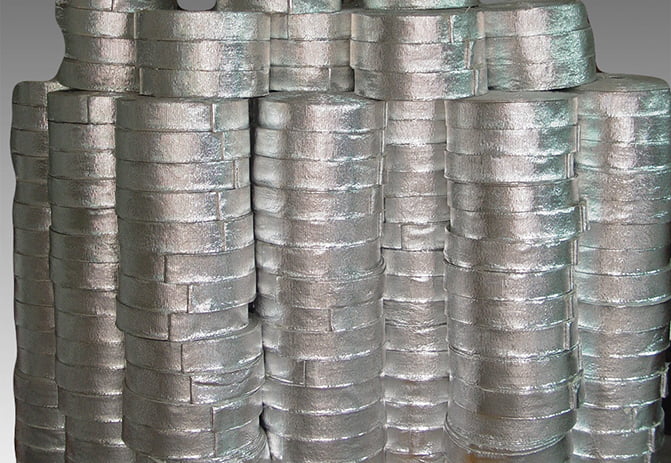

TOP SEALING ALUMINUM FOIL COATED FIBERGLASS TAPE boasts exceptional heat reflection capabilities, reflecting up to 95% of heat with no organic flame contribution. This robust, impermeable, and heat-reflective coating enhances the versatility of the fiberglass fabric, making it suitable for a wide range of demanding applications. Specifically engineered for pipe wrapping and engine exhaust pipe insulation, this product ensures optimal performance and durability in high-temperature environments.
| Description Item | E-Glass | C-Glass | |
| Chemical Composition | SiO2 | 58-63% | 64-68% |
| CaO | 21-23% | 11-15% | |
| Al2O3 | 10-13% | 3-5% | |
| MgO | 2-4% | 4-6% | |
| B2O3 | - | 0-6% | |
| Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in | H2O | 0.2 | 0.13 |
| 1.04 NH2SO4 | 0 | 0.1 | |
| 0.1 NaOH | 0.2-0.6 | 2.28 | |
| Temperature | Softening Point | 890℃/1635℉ | 750℃/1380℉ |
| Coefficient of thermal expansion-in/in/ °F x 10-7 | 2℃/29℉ | 5℃/40℉ | |
| Specific Gravity (bare fiber) | 2.63 | 2.49 | |
| Pristine Tensile Strength, psi | 510,000 | 400,000 | |
| Description Item | Aluminum Foil Coated Fiberglass Tape |
||
| English | Metric | ||
| Coating | Aluminum Foil | ||
| Coating Thickness | 0.28mil/0.7mil/ 0.98mil |
7um/18um/ 25um |
|
| Temperature Resistance |
Continuous Operation | 650°F | 340°C |
| Short Duration Exposure | 1200°F | 650°C | |
| Melting Point | 1220°F | 660°C | |
| Thickness | 0.03-0.24inch | 0.8mm to 6mm | |
| Width | 0.40-8inch | 10mm to 200mm | |
| Color | Silvery | ||
Simply you can wholesale Aluminum Foil-Lined Fiberglass Tape: Superior Heat Shielding and Durability for Industrial Applications direct from manufacturers.
Introducing our Self-Adhesive Fibreglass Sealing Tape, a high-performance solution designed for demanding industrial applications. This innovative tape offers a range of exceptional features:
- **High Electrical Insulation Properties**: Ensures safety and reliability in electrical applications by providing superior insulation against electrical currents.
- **Excellent Dimensional Stability**: Retains its shape and size under varying conditions, making it ideal for applications where consistent performance is crucial.
- **High Tensile Strength**: Offers robust resistance to tearing, making it perfect for heavy-duty applications where durability is key.
Our Self-Adhesive Fibreglass Sealing Tape is the go-to choice for professionals seeking a reliable, versatile, and high-quality sealing solution.
SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Aluminum Foil-Lined Fiberglass Tape: Superior Heat Shielding and Durability for Industrial Applications fornitori conosciuto nel mondo dal 2000.
