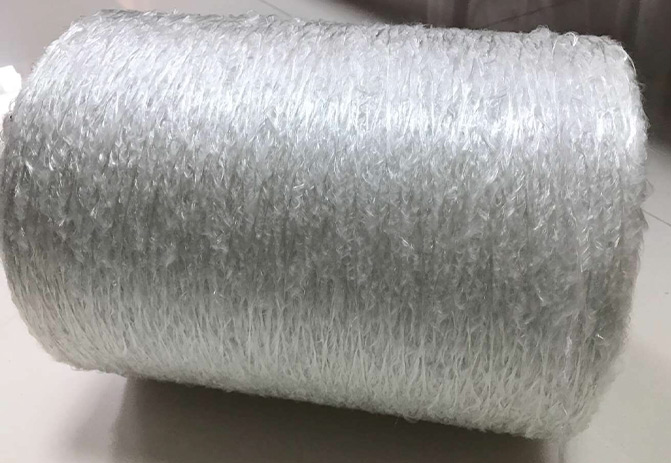

Enhanced Durability Fiberglass Yarn

Descrizione:

"Customizable TOP SEALING Texturized Fiberglass Yarn 3600C: Versatile for Diverse Industrial Fabrications"

Our TOP SEALING Texturized Fiberglass Yarn 3600C is expertly crafted from either E-glass or C-glass fiber filament yarn, offering a versatile solution for a multitude of applications. This yarn is extensively utilized in the creation of fiberglass fabrics, electrical insulation materials, engineering materials, textured yarns, and woven electronic grade fabrics, among others. The unique specifications of any fabric can be meticulously tailored by adjusting the filament diameter, tex number, yarn twists, and the number of filled yarns, ensuring that individual requirements are fully met.

Immagine dettagliata

Dettagli del prodotto

Description	Item	E-Glass	C-Glass
Chemical Composition	SiO2	52-56%	64-68%
	CaO	16-25%	11-15%
	Al2O3	12-16%	3-5%
	MgO	0-5%	4-6%
	B2O3	5-10%	0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in	H2O	1.7	0.13
	1.04 N NH2SO4	48.2	0.1
	0.1 N NaOH	9.7	2.28
Temperature	Softening Point	840℃/1545℉	748℃/1380℉
	Coefficient of Thermal Expansion-in/in/ °F x 10-7	2℃/29℉	5℃/40℉
	Specific Gravity (bare fiber)	2.52-2.61	2.49
Pristine Tensile Strength, psi		500,000	400,000
Dielectric Constant, 72 °F, 106 Hz		6.1-6.7	6.24

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione

DescriptionStyle No.	3600ETK	3600ETC	3600CTK	3600CTC
Glass Type	E-Glass		C-Glass
Colour	White
Processing type	K-Style	C-Style	K-Style	C-Style
Fiber diameter	6,9,11Micron		11Micron
Yarn Diameter	400Tex+/-30
	600Tex+/-40
	800Tex+/-60
	1000Tex+/-80
	1200Tex+/-100
	2400Tex+/-200
	5000Tex+/-500
Water Content	0.10%		0.20%
LOI	≤15%
Thermal Conductivity	<0.035k/m.hr.Co
Tensile Strength	≥ 52
Breaking Strength	60-1000

Simply you can wholesale Enhanced Durability Fiberglass Yarn direct from manufacturers.

Produttore professionale

SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Enhanced Durability Fiberglass Yarn fornitori conosciuto nel mondo dal 2000.
