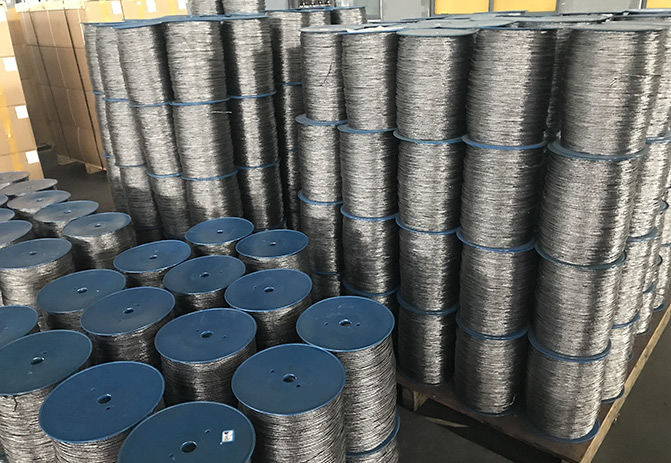

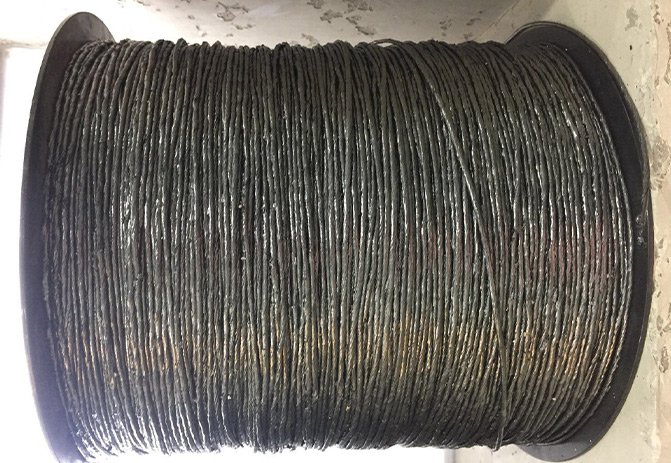

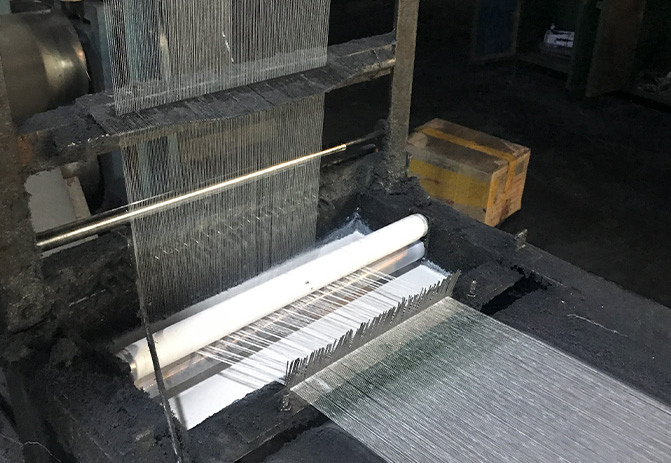

TOP SEALING's Expanded Graphite Yarn 5000Y undergoes a unique twisting process and special treatment. During this process, the graphite is fortified with threads of cotton or alternative materials, enhancing its versatility. This product is ideal for sealing applications across a variety of media, conditions, temperatures, and pressures.
| Property | Value | ||
| English | Metric | ||
| Density | 93.6-112.3ib/ft3 | 1.5-1.8g/cm3 | |
| Fiber Diameter | 0.0002-0.0006inch | 4-15um | |
| Nominal Filament Diameter | 0.00018inch | 4.6um | |
| Filaments per Ply | 1600 | ||
| Plies per Yarn | 10 | ||
| Yarn Denier | 4320 | ||
| Yarn Weight (Yarn Diameter) | - (0.2inch) | 2g/m (5mm) | |
| - (0.04inch) | 3g/m (1mm) | ||
| - (0.2inch) | 5g/m (5mm) | ||
| Property | Description | Value |
| Reinforced Material |
Cotton Fiber | 5-10% |
| Glass Fiber | 5-10% | |
| Inconel Wire | 3-8% | |
| Chemical Composite |
Carbon | >95% |
| Ash | <1% | |
| Sulfur | <1200<50ppm | |
| Fluorine | <50ppm | |
| Chlorine | <50ppm | |
| Tensile Strength | Cotton Fiber | 220-500bar |
| Glass Fiber | 950-2200bar | |
| Inconel Wire | - | |
| Average Breaking Strength | 1648℃(3000℉) | 40ib |
| Average Rosistance | 1648℃(3000℉) | 1.6ohm/cm |
| Electrical Resistivity |
20℃(68℉) | 0.0033ohm/cm |
| 500℃(932℉) | 0.0025ohm/cm | |
| 1500℃(2732℉) | 0.0015ohm/cm | |
| Vapor Pressure |
2000℃(3632℉) | 0.006um |
| 2250℃(4082℉) | 0.21um | |
| 2500℃(4532℉) | 3.8um | |
| Fluid Resistence | - | 0-14 pH |
| Recovery | - | >15% |
| Compressibility | - | 25-50% |
Simply you can wholesale Enhanced Expanded Graphite Yarn for Diverse Industrial Applications direct from manufacturers.
1. "Outstanding Thermal Stability"
2. "Self-Lubricating with a Minimal Coefficient of Friction"
3. "Chemically Inert"
4. "Superior Insulating Properties"
