Expanded PTFE Gaskets

Descrizione:

Ultimate PTFE Gasket Excellence: Pure PTFE Gaskets for Extreme Conditions

Our top-sealing pure PTFE gaskets are crafted from 100% PTFE, utilizing a highly specialized treatment of PTFE fluorocarbon. These gaskets exhibit exceptional tensile strength, flexibility, and hardness, coupled with outstanding chemical and thermal resistance. This makes them the premier choice for gasket seals in the most challenging environments.

Our PTFE gaskets are designed to last, boasting an unlimited shelf life. They will not become brittle, age, or deteriorate over time, ensuring consistent performance and reliability in your applications.

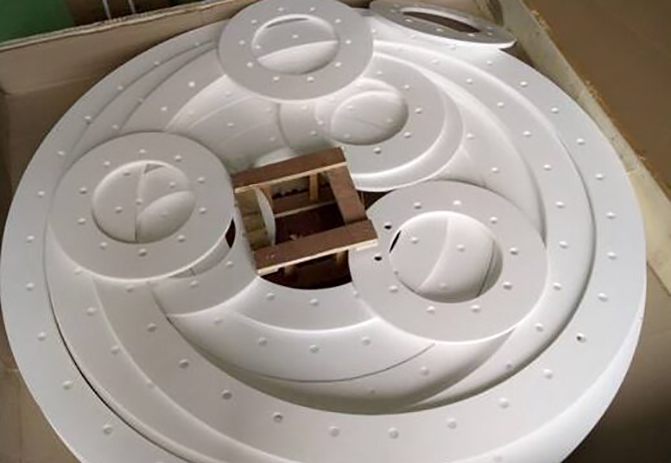

Immagine dettagliata

Dettagli del prodotto

Property	Unite	Nominal Value
Density	g/cm3	0.65-0.95
Compressibility	%	45
Recovery	%	15
Length Tensile Strength	Mpa	17
Cross Tensile Strength	Mpa	27
Compressive Strength	Mpa	14.7
Max Compressive Strength	Mpa	20
pH Limit	-	0-14
Specific Gravity	-	0.85 ± 0.04

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione

Property	Description	Value
		English	Metric
Temperature	Minimum	-320°F	-196℃
	Maximum	600°F	315℃
Color	White	-	-
General Size	Thickness	0.02-0.3 inch	0.4-8 mm
	Sheet Size A Width: 50' ( 1270mm)	50' X 150' (1270mm X 3810mm) 50' X 50' (1270mm X 3810mm)
	Sheet Size B Width: 60' ( 1500mm)	60' X 160' (1500mm X 4100mm) 60' X 80' (1500mm X 2000mm) 60' X 53' (1500mm X 1350mm) 60' X 40' (1500mm X 1000mm) 60' X 180' (1500mm X 4600mm) 60' X 120' (1500mm X 3000mm) 60' X 60' (1500mm X 1500mm)
	Sheet Size C Width: 100'( 2700mm)	106' X 150' (2700mm X 3810mm)

Simply you can wholesale Expanded PTFE Gaskets direct from manufacturers.

Produttore professionale

SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Expanded PTFE Gaskets fornitori conosciuto nel mondo dal 2000.
