High-Performance Graphite-Enhanced PTFE Gland Packing for Reliable Sealing Solutions

Descrizione:

Introducing TOP SEALING Graphite PTFE Gland Packing STYLE 6200GFO: A Cutting-Edge Solution for Superior Performance. Crafted from a graphite-PTFE compound, this advanced packing is free from lubricants, yet boasts exceptional thermal conductivity. Its high flexibility and volumetric stability ensure no embrittlement or aging, resulting in a long service life and outstanding operational efficiency. Plus, it offers a gentle treatment for shafts, extending their lifespan and reducing wear.

"Compared to its counterpart, Graphite PTFE Gland Packing STYLE 6200, which incorporates a lubricant, STYLE 6200GFO stands out with its superior thermal conductivity. This makes it the ideal choice for applications where heat management is paramount.

High-Performance Graphite-Enhanced PTFE Gland Packing for Reliable Sealing Solutions

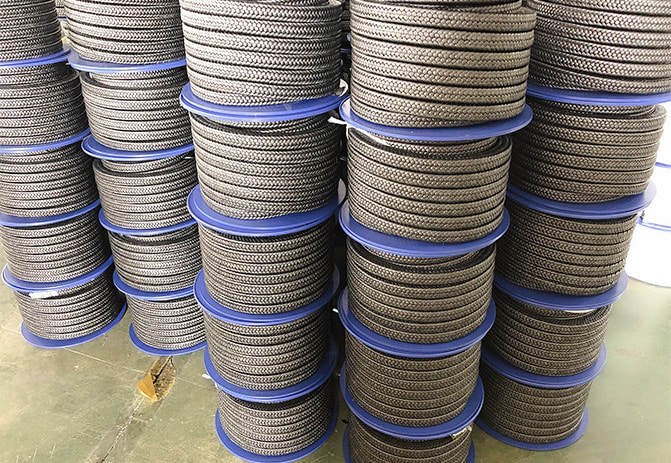

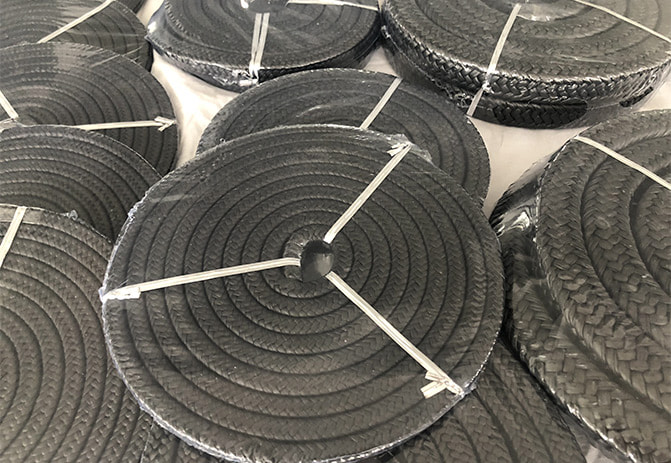

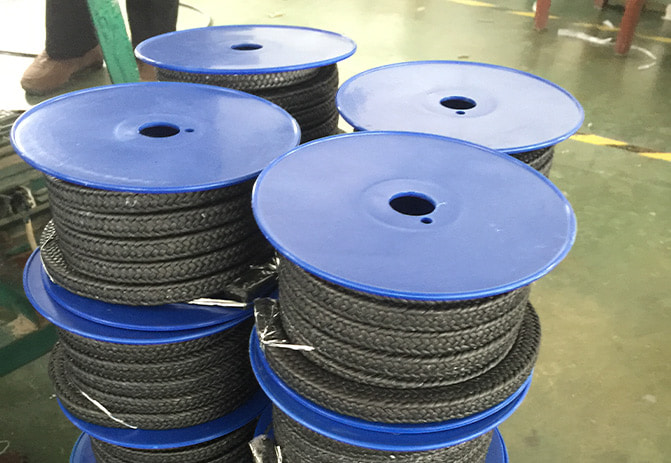

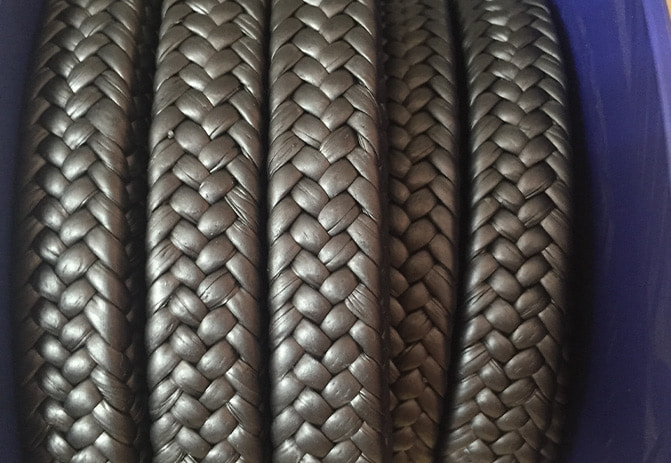

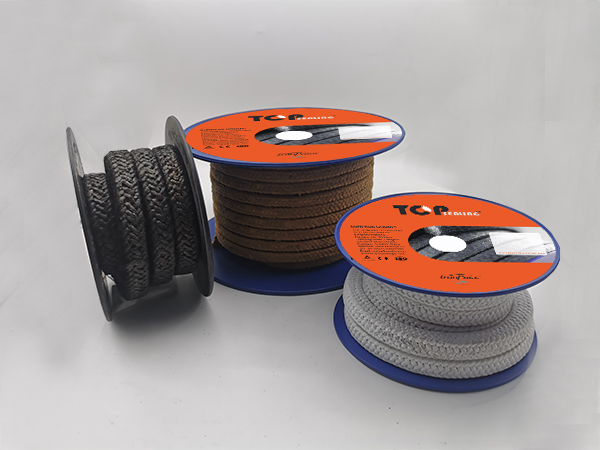

Immagine dettagliata

Dettagli del prodotto

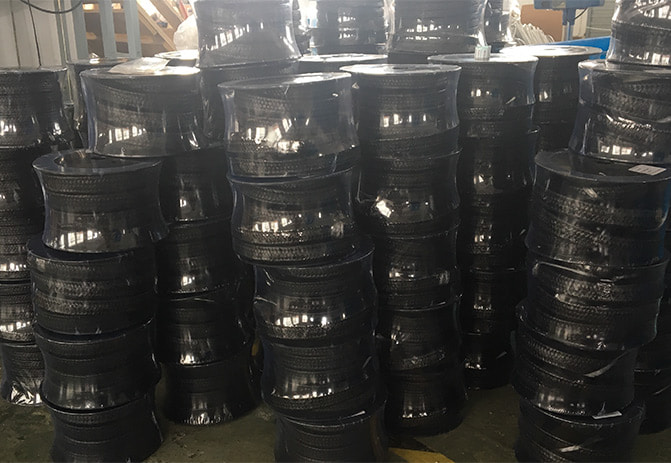

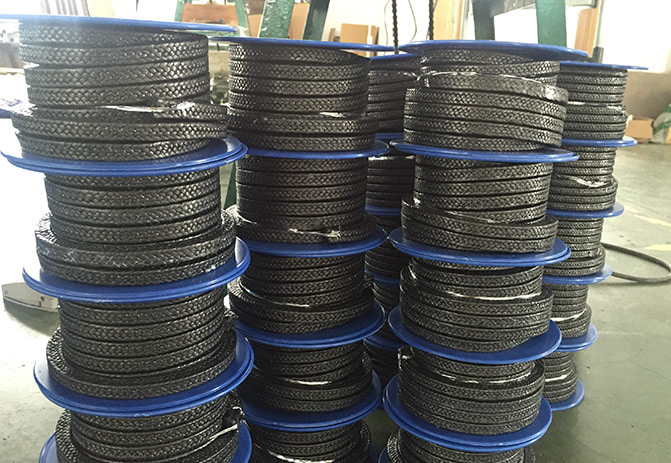

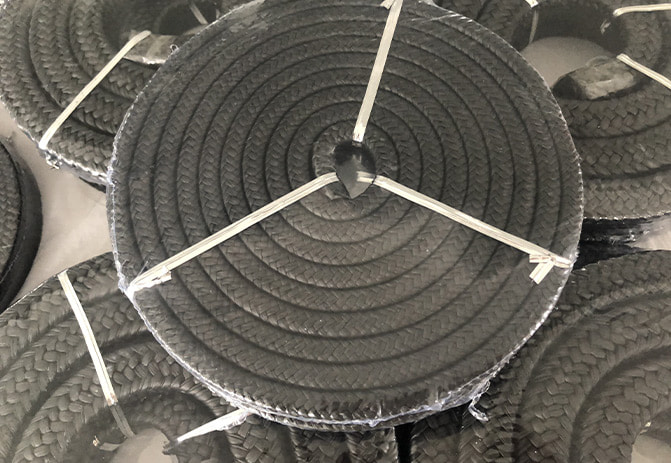

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request.

Not suitable for: Highly oxidizing media like oleum, fumin nitric acid, aqua region, gaseous fluorine , lacquer and paints.

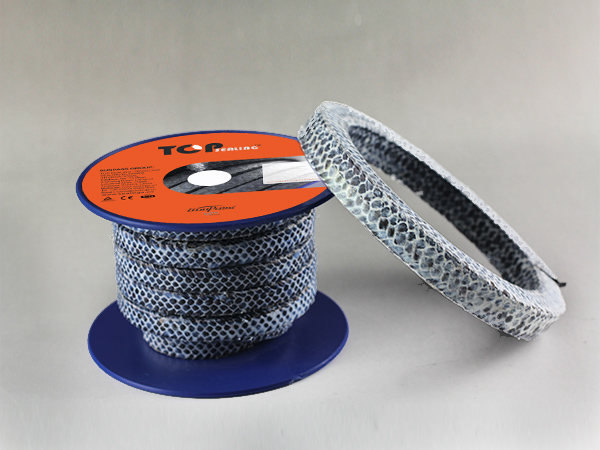

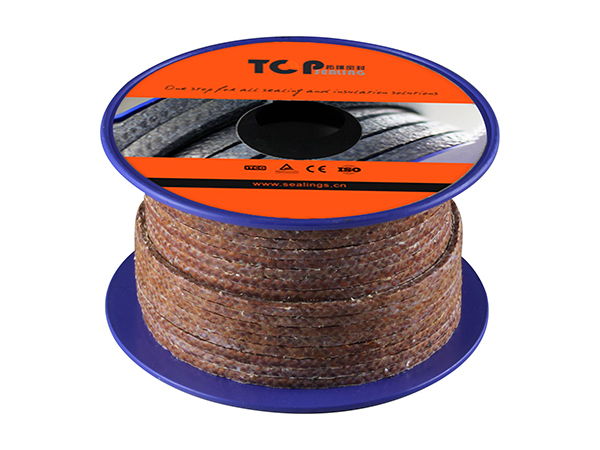

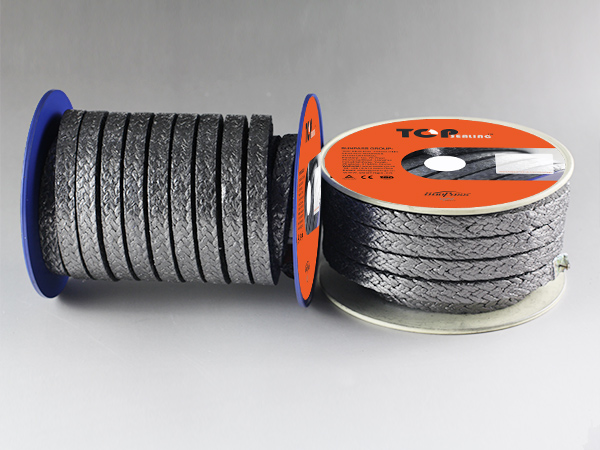

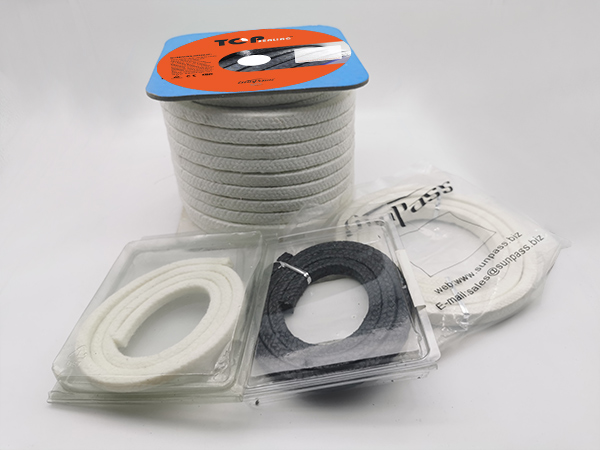

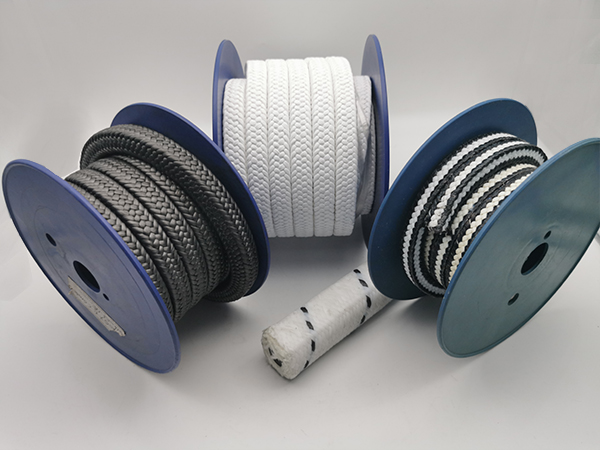

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione


Pressure: bar	25 for 6200;50 for 6200GFO	250	150
Speed: m/s	25	2	—
PH Range	0-14
Temp.℃	-200℃-288℃
Density: (g/cm³)	Abt. 1.50-1.55 for 6200GFO; 1.65-1.75 for 6200
Size	1/8"-2"
Size	3mm-50mm

1. "PTFE-Graphite Packing for Challenging Environments: Our STYLE 6200GFO and STYLE 6200 packings are engineered for high-performance applications such as pumps, agitators, mixers, and kneaders. They excel in situations involving high peripheral speeds and temperatures where traditional pure PTFE packings may not suffice, ensuring reliable sealing in demanding conditions."

2. "Versatile PTFE-Graphite Packing for Diverse Media: Suitable for both liquid and gaseous applications, our packing is ideal for handling a wide range of substances, including acids, lye, solvents, adhesives, and abrasive or crystalline media. It is also effective in managing challenging environments such as sewage, slurries, and salt, providing robust sealing solutions for a variety of industries."

Simply you can wholesale High-Performance Graphite-Enhanced PTFE Gland Packing for Reliable Sealing Solutions direct from manufacturers.
