Advanced Metal Kamprofile Serrated Gaskets for Enhanced Sealing Performance

Descrizione:

SUNPASS Metal Kamprofile Serrated Gaskets: Unmatched Reliability for Challenging Environments

SUNPASS Metal Kamprofile Serrated Gaskets are engineered to excel in the most demanding applications, including superheated steam, high-pressure hydrocarbons, and chemical services. These robust gaskets are a staple in both conventional Electric Power Plants and Nuclear Power Plants, as well as in the chemical and petrochemical industries.

Featuring a solid core with precisely machined grooves and a soft material facing—such as graphite, PTFE, or other specialized materials—our gaskets are crafted from premium stainless steels, including SS304L, SS316L, SS321, and more. This combination of materials and design ensures exceptional sealing performance and durability in even the most challenging conditions.

Advanced Metal Kamprofile Serrated Gaskets for Enhanced Sealing Performance

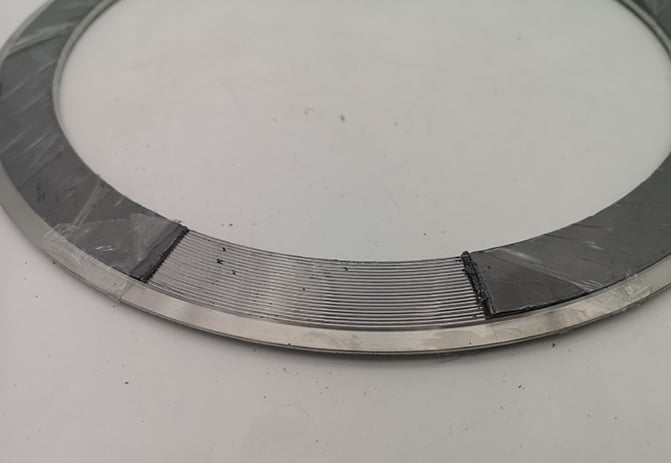

Immagine dettagliata

Dettagli del prodotto

Product	Materials	Surface Pressure(N/mm2)
		T=20℃		T=300℃
		min	max	min	max
MKG	Carbon Steel/Graphite Carbon Steel/PTFE	15	350	30(1)	210(1)
	1.4541/Graphite 1.4541/PTFE	15	500	30(1)	420(1)
	1.4541/Aluminium	80	500	95	420
	1.4541/silver	125	500	140	420
	Carbon Steel/Graphite Carbon Steel/PTFE	15	350	20(1)	210(1)
	1.4541/Graphite 1.4541/PTFE	15	500	20(1)	420(1)
	1.4541/Aluminium	70	500	80	420
	1.4541/silver	100	500	110	420

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione

Simply you can wholesale Advanced Metal Kamprofile Serrated Gaskets for Enhanced Sealing Performance direct from manufacturers.

Produttore professionale

SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Advanced Metal Kamprofile Serrated Gaskets for Enhanced Sealing Performance fornitori conosciuto nel mondo dal 2000.
