Graphite-Infused Filler: Superior Conductive and Thermal Insulation Additive

Descrizione:

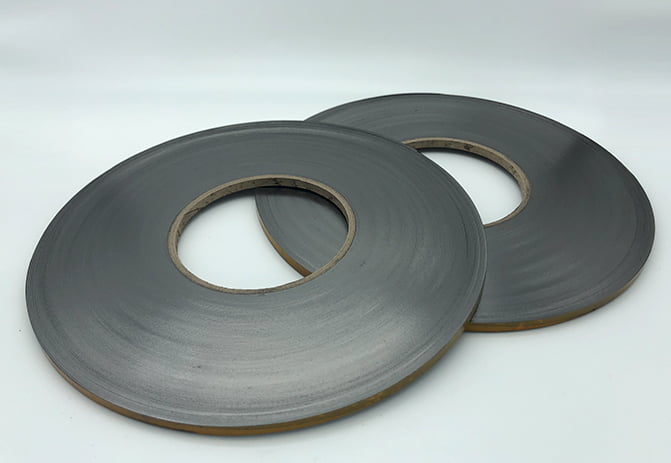

"Top Sealing Flexible Graphite Tape: Versatile and Reliable Sealing Solution"

This high-performance tape is meticulously crafted from expanded graphite yarn, intricately braided using advanced braiding techniques. It offers exceptional compatibility with a wide range of media, including hot water, steam, acids, alkalis, organic solvents, hydrocarbons, and low-temperature liquids. The tape's sealing capabilities are enhanced for greater safety and effectiveness, making it an indispensable component for addressing various sealing challenges. The Pure Flexible Graphite Packing, renowned for its popularity, stands as a testament to the quality and reliability of our products.

Graphite-Infused Filler: Superior Conductive and Thermal Insulation Additive

Immagine dettagliata

Dettagli del prodotto

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione

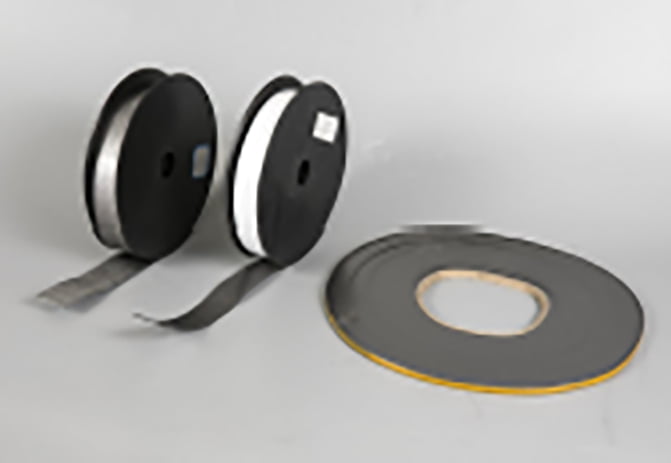

Item	Flexible Graphite Tape	Graphite Corrugated Strip	Graphite Corrugated Tape with Adhesive
Style	8050	8070	8080
Density (kg/m3)	0.7-1.3	1.0-1.3	1.4-1.5
Thickness(mm)	0.1-2.0	0.2-1.5	0.2-1.5
Width (mm)	2.5-600	8-80	8-80
Material	Nature Graphite
Carbon Content(Purity)	99.50%
Working Temperature	-40 to +680 °C
Tensile Strength	>4.9 Mpa
Thermal Conductivity	Through Thickness	36 BTU.in/ft2.h.F(5 W/m.K)
	Parallel to Surface	960 BTU.in/ft2.h.F (140 W/m.K)
pH Range	1-14	5.1
Compressibility	35%-55%
Recovery	>9%
Ash Content	<0.5%
TAG(450°C)	<1.0%
Total Sulphur Content	1000ppm
Max Temp. Oxyd Atmosphere	680° C
Max Temp. Non oxyd Atmosphere	3000 °C
Chloride content	<50 ppm
Inhibitor (against oxidation)	with anorganic
Iron content	< 1800 ppm

Resilience and excellent sealing performance, mainly used for non-metallic filling materials of metal wound gaskets, graphite packing rings, coated mats, adhesive graphite strips, graphite corrugated strips and backed graphite corrugated strips.

Simply you can wholesale Graphite-Infused Filler: Superior Conductive and Thermal Insulation Additive direct from manufacturers.

Produttore professionale

SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e Graphite-Infused Filler: Superior Conductive and Thermal Insulation Additive fornitori conosciuto nel mondo dal 2000.
