Non-Asbestos Beater Sheet: High-Performance Industrial Gasket Material

Descrizione:

"TOP SEALING Non-Asbestos Beater Sheet: Engineered for Superior Gasket Performance"

This high-performance medium-density material is crafted from a blend of synthetic emulsion, plant fiber, and inorganic fillers. Designed for use as a soft gasket, it combines cellulose and aramid fibers with a reinforced inorganic filler, ensuring exceptional sealing under medium flange loads.

The unique formulation allows the gasket to expand appropriately when exposed to oil, compensating for any machining precision shortfalls and enhancing self-sealing capabilities. Available in vulcanized non-asbestos beater sheets with smooth surfaces, it can also be equipped with anti-stick or graphite coatings for added functionality.

Boasting excellent compressibility and a high coefficient of resilience, this product is the epitome of quality and reliability in sealing solutions for industrial applications.

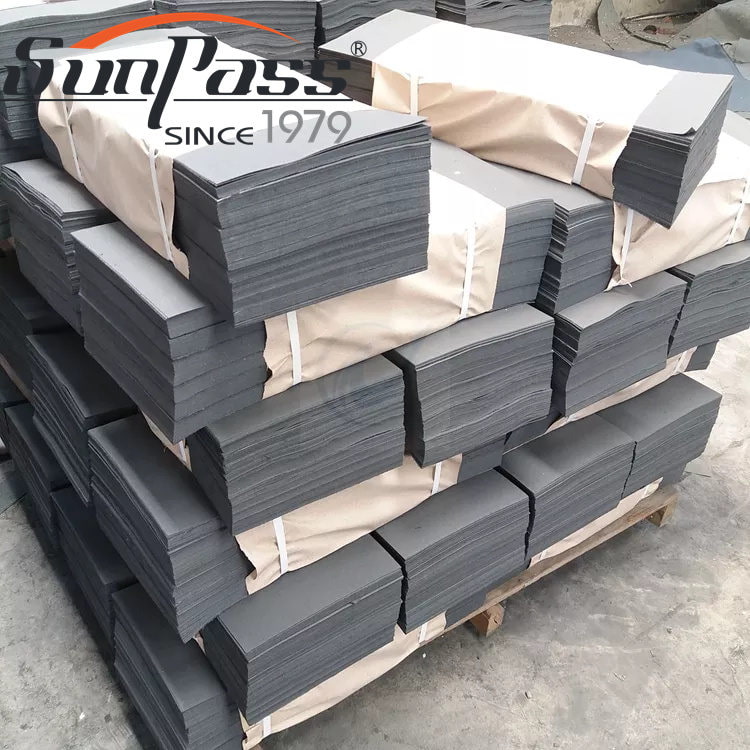

Non-Asbestos Beater Sheet: High-Performance Industrial Gasket Material

Immagine dettagliata

Dettagli del prodotto

1. Used in Automobile, farm machinery, motors, engineering etc.

2. it can be used in oil system and water supply system at temperature 150 deg.

Altri stili

Dati applicativi

Vantaggi

Video

Confronto Visione

Data	Unit	Non Asbestos Beater Sheet	Vulcanized non-asbestos beater sheet
Color	Grey, Black, other color on request
Dendisty	G/CM3	0.9-1.1	1.2-1.4
Thickness	MM	0.3-2.0MM	0.3-2.0MM
Width	MM	500MM; 1000MM
Length	MM	500MM; 1000MM; 1200MM; 1500MM
Tensile strength	≥Mpa	12.7
Compressibility	%	15±5
Recovery	≥%	45
Stress relaxation	≤%	35
Weight increase (in oil)	≤%	35
Thickness increase (in oil)	≤%	15

Simply you can wholesale Non-Asbestos Beater Sheet: High-Performance Industrial Gasket Material direct from manufacturers.
