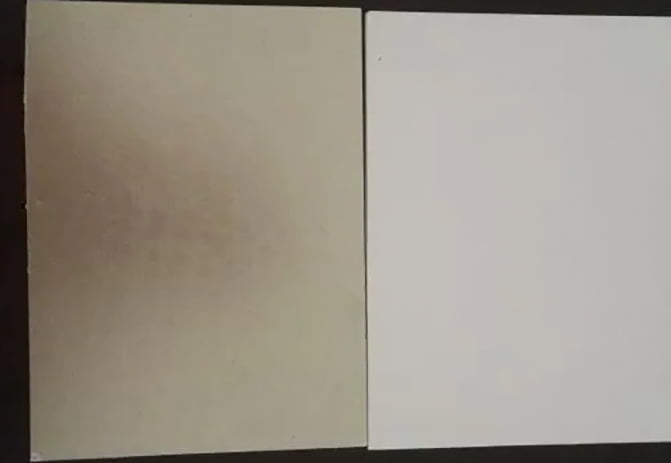

"TOP SEALING MICA SHEET: Engineered for Extreme Conditions with Exceptional Attributes"
Featuring outstanding properties such as heat retardation, flame resistance, low thermal conductivity, superior electrical insulation, robust mechanical strength, and non-toxicity, our mica sheets are the epitome of reliability in demanding environments.
| Property | Data | |
| Temperature Range (°C) | Up to 1000°C | |
| Pressure Range (bar) | Up to 5 bar | |
| Density (g/cm3) | 2.1 g/cm3 | |
| Thermal Conductivity (w/m) | 0.3 | |
| Compressive strength at 20°C (N/mm2) | ≥400 | |
| Flexural strength (N/mm2) | ≥230 | |
| Tensile Strength (Mpa) | 20 | |
| Recovery | 35% | |
| Misture Content | < 3% | |
| Weight Loss @ 550°C for 4 Hrs | < 1 % | |
| Water Absorption after 24 hrs | < 0.50 % | |
| Ignitiaon loss @ 800°C | < 5% | |
Simply you can wholesale High-Performance Mica Sheet: The Ultimate Insulation Solution direct from manufacturers.
"Arc Chutes, Bus Bar Supports, Resistor Banks, Molding Plates, Dynamic Braking Resistors, Furnace Linings, Resistor Heat Dissipaters, Insulation for Heated Hydraulic Press Platens, and Induction Furnace Components: Precision-Engineered for High-Performance Industrial Applications"
Expertly crafted for resilience in challenging conditions, our range of industrial components includes arc chutes for reliable electrical protection, robust bus bar supports for stable power distribution, high-capacity resistor banks for precise voltage regulation, durable molding plates for consistent quality, dynamic braking resistors for efficient energy management, heat-resistant furnace linings for longevity, advanced resistor heat dissipaters for optimal thermal control, and specialized insulation for heated hydraulic press platens, all culminating in the high-efficiency induction furnaces that drive industry forward.
SUNPASS SEALING è un produttore leader in Sigillatura e Isolamento in Cina. Produzione e Servizio 7*24. Sunpass è un famoso marchio cinese e High-Performance Mica Sheet: The Ultimate Insulation Solution fornitori conosciuto nel mondo dal 2000.
